TrolMaster OAT-24 Aqua-X 24V 12-Output Board

$ 253.95
Thumbnail for TrolMaster OAT-24 Aqua-X 24V 12-Output Board Thumbnail for TrolMaster OAT-24 Aqua-X 24V 12-Output Board — view 2 Thumbnail for TrolMaster OAT-24 Aqua-X 24V 12-Output Board — view 3

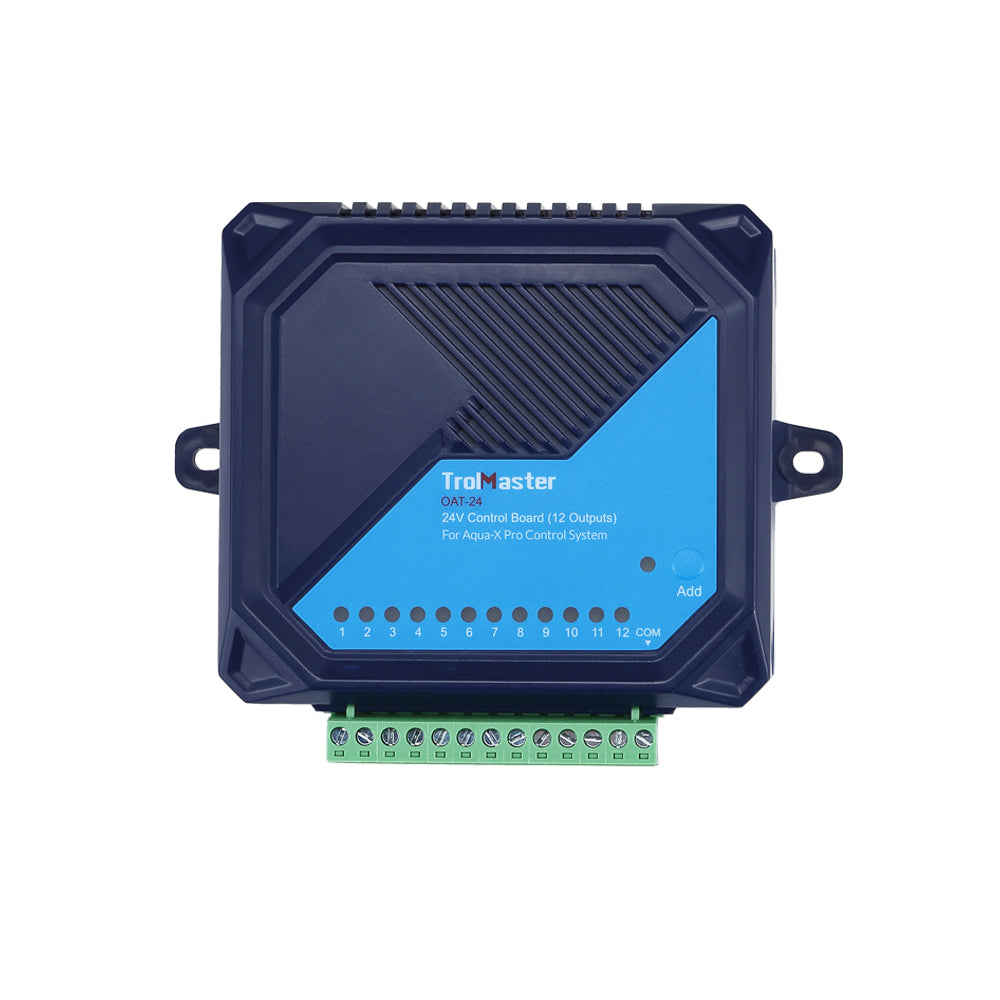

TrolMaster OAT-24 Aqua-X 24V 12-Output Board

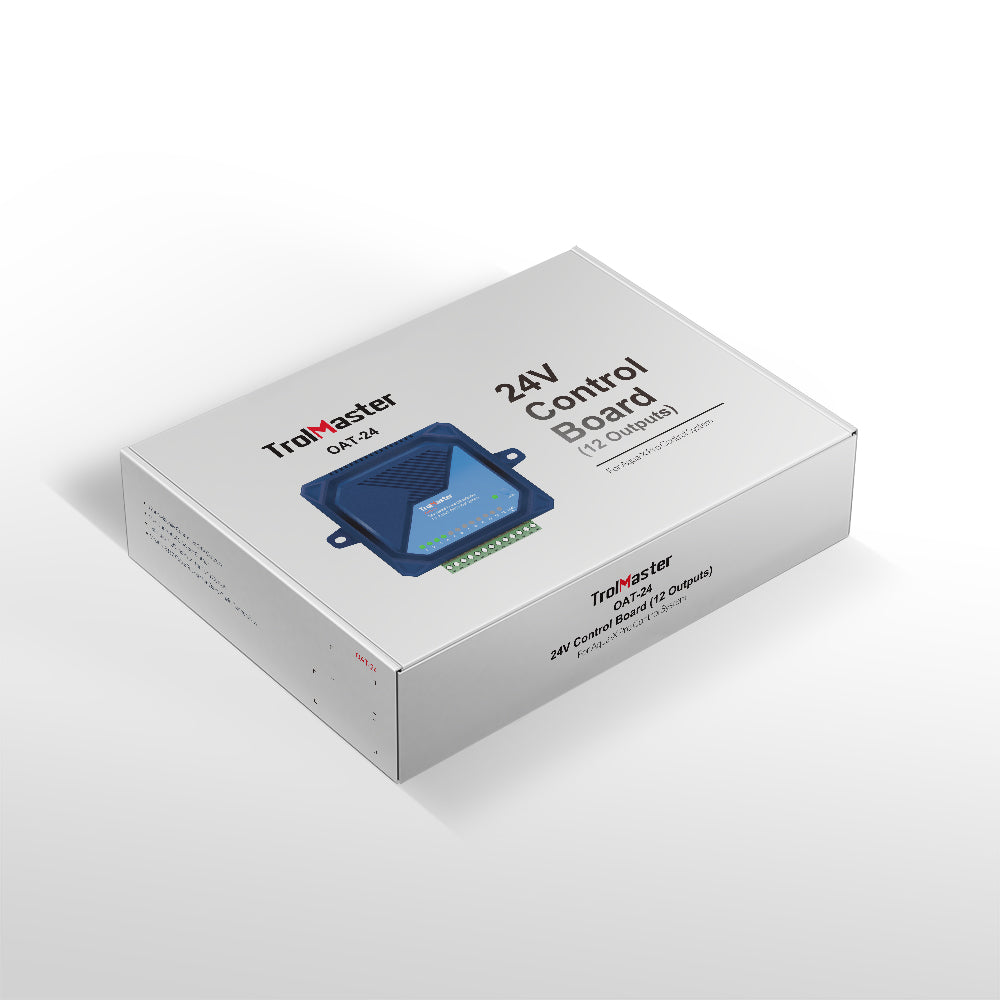

TrolMaster OAT-24 Aqua-X 24V 12-Output Board — view 2
TrolMaster OAT-24 Aqua-X 24V 12-Output Board — view 3

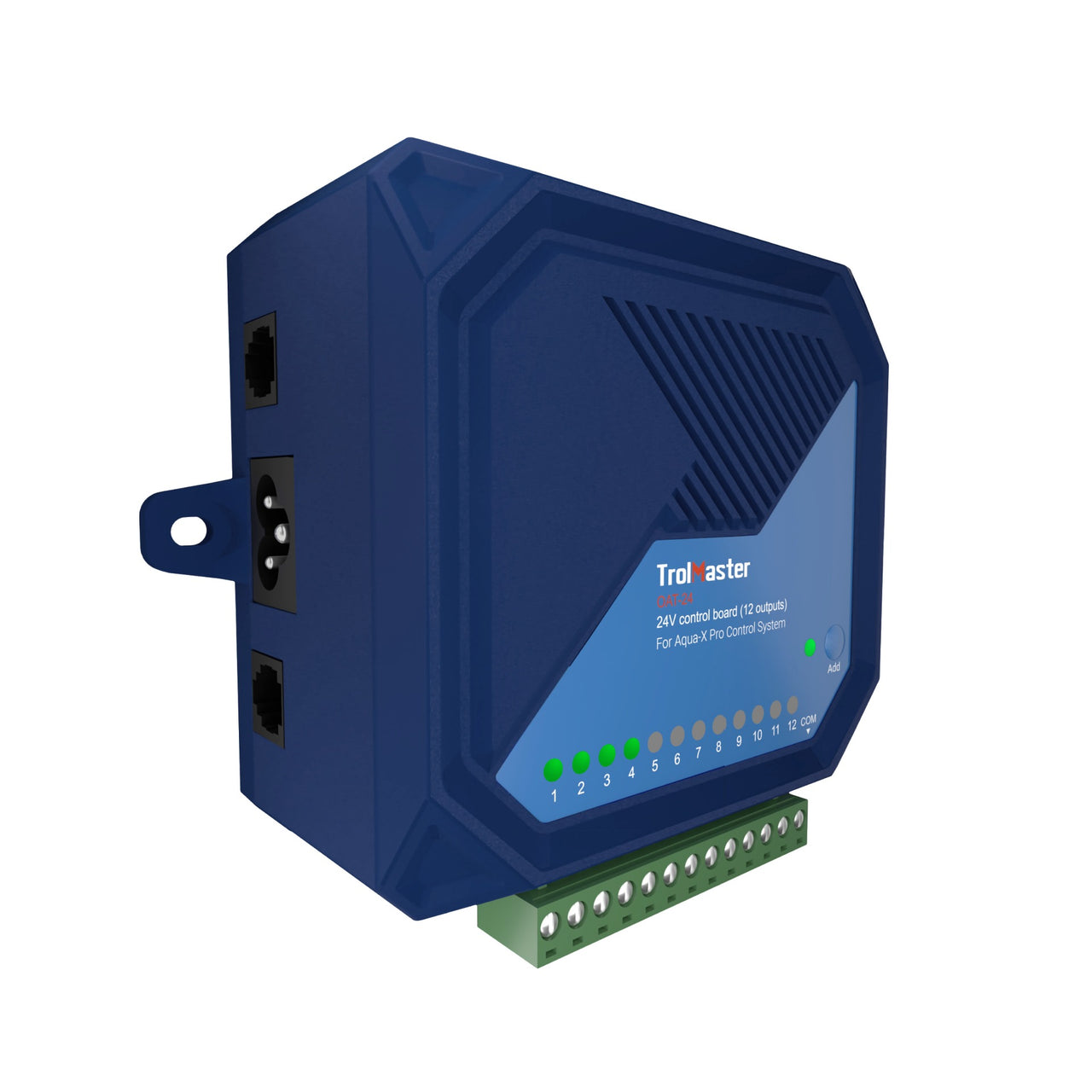

TrolMaster OAT-24 Aqua-X 24V 12-Output Board

$ 253.95
Description

The OAT-24 module is specifically designed for the Aqua-X Pro Irrigation Control System.

Features

  • 12 individuals schedules outputs

Specifications

Power Input Voltage: 100-240V, 50/60Hz
Specification Max Input Current: 1.7A
Power Max Output Voltage/Current: 24VAC/0.5A per output
Operating range Working Environments: Temperature 32-122°F (0-50°C), Humidity ≤90%

What's included

  • 1x OAT-24
  • 1x 16ft RJ12 Cable
  • 1x Power Cable
  • 1x 13-Pin Phoenix Type Connector

Compatibility

NFS-2, NFS-3, GCS-1

Package dimensions

10.83 × 6.46 × 2.56 in · 1.92 lb

Documents
