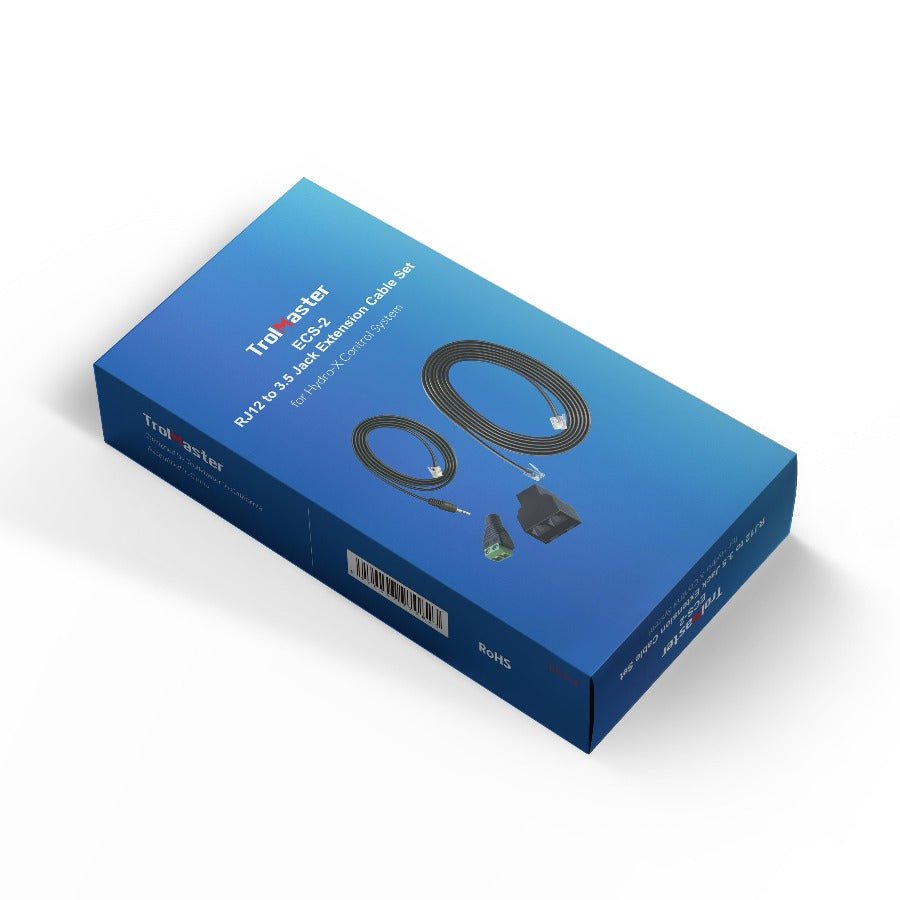

Trolmaster Hydro-X ECS-2 Lighting Adapter RJ12 to 3.5 Jack Universal Convertor Cable Set For 0-10V Dimming LEDs

Trolmaster

Regular price $ 21.00 $ 19.95 Sale



Overview

The ECS-2 cable set is designed to connect Hydro-X to most LED drivers with bare wire +/-  wiring.

For connecting to a Hydro X HCS-1 or 2. Use with FGI Uniformity Pro 640 & Uniformity Pro Flex (when not using the WiFi controller), FGI Lightpanel 500 (requires a Cat6 adapter plug).

Most LED drivers have a pair of + and - wires which control dimming functions. This adapter set provides a simple screw down wiring terminal with a 3.5mm jack connector and RJ-12 extension wiring allowing simple connection from your LED to the Hydro-X controller.

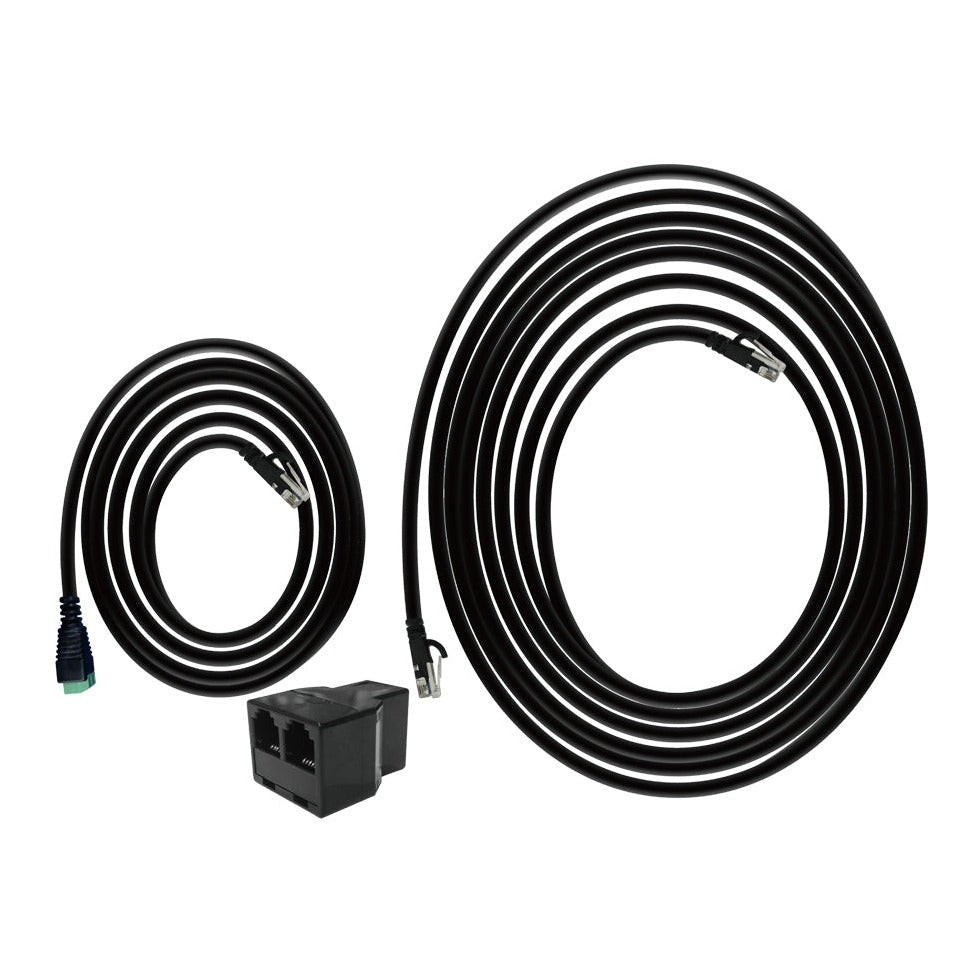

The ECS-2 comes with a 16 ft RJ12 cable, a Y-splitter and a special 4 ft RJ12 / 3.5mm jack cable. The special cable connects to your lighting fixture / LED driver using the two-screw terminal block to connect to loose wires on the LED driver. Simply connect the two wires from your LED driver to the terminal block, each of the lights being controlled are wired in a “daisy-chain” configuration back to the Hydro-X LMA adapter.

~specifications~

  • 1 x 16 ft RJ12 Cable

  • 1 x 4 ft RJ12 to 3.5 Jack Cable

  • 1 x T-shaped Splitter

  • 1 x 3.5mm Female Barrel Connector





Overview

The ECS-2 cable set is designed to connect Hydro-X to most LED drivers with bare wire +/-  wiring.

For connecting to a Hydro X HCS-1 or 2. Use with FGI Uniformity Pro 640 & Uniformity Pro Flex (when not using the WiFi controller), FGI Lightpanel 500 (requires a Cat6 adapter plug).

Most LED drivers have a pair of + and - wires which control dimming functions. This adapter set provides a simple screw down wiring terminal with a 3.5mm jack connector and RJ-12 extension wiring allowing simple connection from your LED to the Hydro-X controller.

The ECS-2 comes with a 16 ft RJ12 cable, a Y-splitter and a special 4 ft RJ12 / 3.5mm jack cable. The special cable connects to your lighting fixture / LED driver using the two-screw terminal block to connect to loose wires on the LED driver. Simply connect the two wires from your LED driver to the terminal block, each of the lights being controlled are wired in a “daisy-chain” configuration back to the Hydro-X LMA adapter.

~specifications~

  • 1 x 16 ft RJ12 Cable

  • 1 x 4 ft RJ12 to 3.5 Jack Cable

  • 1 x T-shaped Splitter

  • 1 x 3.5mm Female Barrel Connector



×
